| Model |
TZ470 |
| Operating system |
SonicOS 7 |

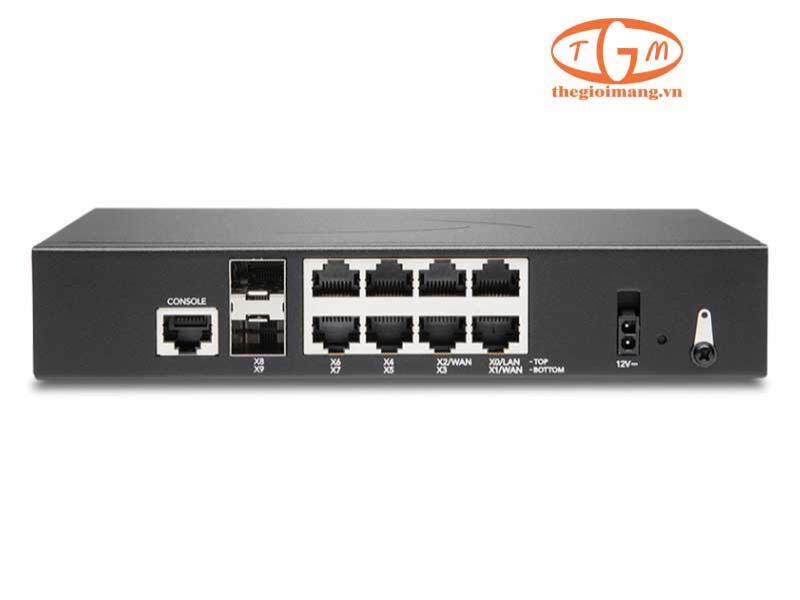

| Interfaces |
8x1GbE, 2x2.5G SFP+, 2 USB 3.0, 1 cổng Console |
| Wireless support |
Không hỗ trợ (Chỉ các model TZx70W mới hỗ trợ) |
| Power over Ethernet (PoE) |
Không hỗ trợ |
| Storage expansion slot (Bottom) |
Tùy chọn mở rộng tới 256GB |
| Management |
CLI, SSH, Web UI, REST API, GMS, NSM |
| Single Sign-On (SSO) Users |
2.500 người dùng |
| VLAN interfaces |
128 |
| Access points supported |
32 APs |
| Hiệu suất Firewall/VPN |
| Firewall inspection throughput |
3.5 Gbps |
| Threat prevention throughput |
1.5 Gbps |
| Application inspection throughput |
2 Gbps |
| IPS throughput |
2 Gbps |
| Anti-malware inspection throughput |
1.5 Gbps |
| TLS/SSL (DPI SSL) throughput |
600 Mbps |
| IPSec VPN throughput |
1.5 Gbps |
| Connections per second |
12.000 |
| Maximum connections (SPI) |
1.000.000 |
| Maximum connections (DPI) |
250.000 |
| Maximum connections (DPI SSL) |
35.000 |
| VPN |
| Site-to-site VPN tunnels |
150 kết nối VPN site-to-site |
| IPSec VPN clients (maximum) |
5 mặc định (tối đa 200) |
| SSL VPN licenses (maximum) |
2 mặc định (tối đa 150) |
| Encryption/authentication |
DES, 3DES, AES (128/192/256), SHA-1, Suite B |
| Key exchange |
Diffie-Hellman (Group 1, 2, 5, 14v) |
| Route-based VPN |
Hỗ trợ RIP, OSPF, BGP |
| Certificate support |
Verisign, Thawte, RSA Keon, Entrust, Microsoft CA |
| VPN features |
Dead Peer Detection, DHCP over VPN, Redundant Gateway, NAT Traversal |
| Global VPN client platforms |
Windows 10 |
| NetExtender |
Windows 10, Linux |
| Mobile Connect |
iOS, Android, macOS, Chrome OS, Windows, Kindle Fire |
| Dịch vụ bảo mật |
| DPI Services |
Gateway AV, Anti-Spyware, IPS, DPI SSL |
| Content Filtering Service (CFS) |
Có |
| Anti-Spam Service |
Có |
| Application Visualization |
Có |
| Application Control |
Có |
| Capture ATP |
Có (hỗ trợ RTDMI™) |
| Networking |
| IP address assignment |
DHCP, PPPoE, L2TP, PPTP, Static, DHCP Relay |
| NAT modes |
1:1, N:1, Flexible NAT, PAT, Transparent |
| Routing protocols |
RIP, OSPF, BGP, Static, Policy-Based Routing |
| QoS |
DSCP, 802.1p, Bandwidth mgmt, WMM |
| Authentication |
LDAP, RADIUS, SSO, CAC, Internal DB |
| Local user database |
250 người dùng |
| VoIP |
Hỗ trợ H.323 v1-5, SIP |
| Standards |
TCP/IP, UDP, ICMP, HTTPS, SNMP, IEEE 802.3... |
| High availability |
Active/Standby with stateful sync |
| Phần cứng |
| Form factor |
Thiết kế để bàn (desktop) |
| Power supply |
36W external, hỗ trợ nguồn dự phòng |
| Maximum power consumption |
19.95W |
| Input power |
100-240V AC, 50-60Hz |
| Heat dissipation (BTU) |
68.03 BTU/h |
| Dimensions (cm) |
3.5 x 13.5 x 19 |
| Weight |
0.83 kg |
| WEEE weight |
1.24 kg |
| Shipping weight |
1.43 kg |
| MTBF @25°C |
46 năm |
| Environment (Opr./Storage) |
0°C – 40°C / -40°C – 70°C |
| Humidity |
5% – 95% không ngưng tụ |
