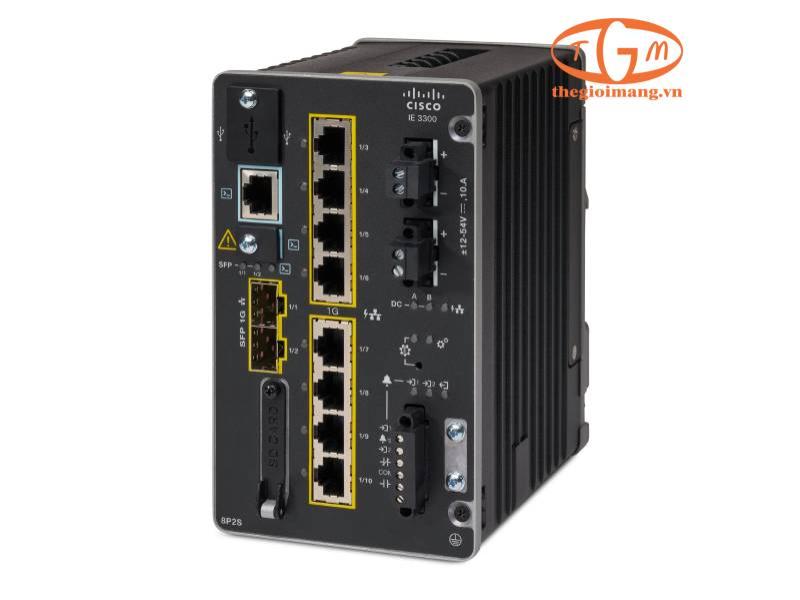

Switch Cisco Catalyst IE-3300-8P2S-A là thiết bị chuyển mạch công nghiệp thế hệ mới, cung cấp 8 cổng Gigabit Ethernet hỗ trợ PoE với công suất lên đến 360W và 2 cổng uplink SFP 100/1000 Mbps. Thiết bị hỗ trợ cấp phép phần mềm Network Advantage, đáp ứng các yêu cầu cao về bảo mật, hiệu suất và khả năng mở rộng trong môi trường khắc nghiệt. Với thiết kế nhỏ gọn, chuẩn DIN rail và khả năng chịu được điều kiện môi trường khắc nghiệt, IE-3300-8P2S-A phù hợp cho các hệ thống tự động hóa công nghiệp, năng lượng, giao thông thông minh và hạ tầng đô thị.

Đặc điểm nổi bật
-
Tổng cộng 10 cổng mạng, gồm 8 cổng RJ45 Gigabit hỗ trợ PoE và 2 cổng uplink SFP 100/1000 Mbps.
-
PoE Power Budget lên đến 360W, đủ cung cấp điện cho nhiều thiết bị như camera IP, cảm biến, điểm truy cập không dây,...
-
Bộ nhớ mạnh mẽ: 4GB DRAM, 1.5GB Flash và hỗ trợ thẻ SD 4GB/16GB.
-
Tốc độ chuyển tiếp tuyến tính, hỗ trợ 8 hàng đợi QoS, 16K địa chỉ MAC và 256 VLANs.
-
Hỗ trợ tính năng Layer 3: định tuyến IPv4/IPv6, IGMP, ACLs lên đến 3K entries.
-
Cổng console đa dạng: RJ-45 và USB Mini-B tiện lợi cho quản lý.
-
Thiết kế công nghiệp bền bỉ: chuẩn DIN rail, 2 nguồn DC vào, hoạt động ổn định trong môi trường khắc nghiệt.
Xem thêm
Rút gọn
| Descriptions | IE-3300-8P2S-A |
| Total ports | 10 |
| 10/100/1000 RJ45 Copper ports | 8 |
| 100/1000 SFP ports | 2 |
| 1GE/2.5G RJ45 Copper ports | - |
| 1GE/10G SFP+ Ports | - |
| Software license | Network Advantage |
| Hardware specification | |
| PoE power budget | 360W(including expansion module) |
| Removable storage | USB, SD card |
| Alarms | 2 alarms in, 1 alarm out |
| Console ports | 1 RS-232 (via RJ-45), 1 USB Mini Type B |
| Power inputs | Dual DC power inputs |
| Physical configurations | |
| Dimensions (H x W x D) | 6 in. X 3.6 in. X 5.3 in. 15.2 cm. x 9.1 cm. x 13.5 cm |
| Weight | 3.8 lbs 1.7 kg |
| Mounting | DIN rail |
| Performance and scalability features | |
| Forwarding rate | Line rate for all ports and all packet sizes |
| Number of queues | 8 |
| Unicast MAC addresses | 16K |
| Internet Group Management Protocol (IGMP) multicast groups | 1K |
| No. of VLANs | 256 |
| IPv4 Indirect routes1 | 3000 |
| IPv6 Indirect routes1 | 512 |
| Spanning Tree Protocol (STP) instances | 128 |
| Access Control Entries (PACL/VACL/RACL) | 3K |
| DRAM | 4 GB |
| Flash [User Accessible] | 1.5 GB |
| SD card capacity2 | 4 GB, 16 GB |
| Jumbo Frames | 8996 bytes |
| Power consumption | 32W |
| Compliance Specifications | |
| Industrial Automation Control System | IEC 62443-4-1 IEC 62443-4-2 |
| Electromagnetic emissions | FCC 47 CFR Part 15 subpart B Class A EN 55032/CISPR 32 Class A VCCI Class A AS/NZS CISPR 32 Class A CISPR 11 Class A ICES 003 Class A CNS 13438 Class A3 KN 32 Class A3 EN 300 386 |
| Electromagnetic immunity | CISPR 24 / CISPR 35 EN55024/ EN55035 KN 35 EN 61000-4-2 Electro Static Discharge (air – 15kV, contact – 8kV) EN 61000-4-3 Radiated RF (10V/m UTP, 20V/m STP) EN 61000-4-4 Electromagnetic Fast Transients (4kV) EN 61000-4-5 Surge (2KV/1KV Power, 4KV STP) EN 61000-4-6 Conducted RF (10Vrms UTP) EN 61000-4-8 Power Frequency Magnetic Field (1000A/m) EN 61000-4-10 Damped Oscillatory Magnetic Field (100 A/m) EN 61000-4-16 Conducted CM Disturbances (30V, Cont/ 300V, 1 sec) EN 61000-4-17 Ripple Immunity DC Power (10%) EN 61000-4-18 Damped Oscillatory Wave (2.5kV, 1MHz) EN-61000-4-29 DC Voltage Dips and Interruptions |
| Industry standards | EN 61000-6-2 Industrial Immunity EN 61000-6-4 Industrial Emissions EN 61000-6-1 Light Industrial Immunity EN 61326-1 Measurement, Control and Laboratory Equipment EN 61131-2 (EMC - Emission and Immunity) IEEE 1613 Electric Power Stations Communications Networking EN/IEC 61850-3 Electric Substations Communications Networking ODVA Industrial EtherNet/IP NEMA TS 2-2016 AREMA C and S section 11, 19 IP30 |
| Marine I | DNV Certification according to class guideline DNV-CG-0339 Additional Standards: IEC 60945, IACS UR E10 Marine DNV GL – Ships; High speed and light craft |
| Safety standards and certifications | Information Technology Equipment: UL/CSA 60950-1, IEC 60950-1 CB with all country deviations UL/CSA 62368-1, IEC 62368-1 CB with all country deviations Industrial floor (control equipment): UL/CSA 61010-2-201 CB report and certificate to IEC/EN 61010-2-201 Hazardous locations: UL121201(Class l, Div 2, groups A-D) CSA 213 (Class l, Div 2, groups A-D) UL/CSA 60079-0, -15 (Class l, Zone 2, Gc/IIC) IEC 60079-0, -15 IECEx test report (Class l, Zone 2, Gc/IIC) EN 60079-0, -15 ATEX certificate (Class l, Zone 2, Gc/IIC) Cabinet enclosure required |
| Operating environment | Operating temperature: -40°C to +70°C (40 LFM vented enclosure) -40°C to +60°C (sealed enclosure) -40°C to +75°C (Min. 200 LFM fan or blower-equipped enclosure) +85°C (type tested for 16 hours) Altitude: up to 15,000 feet |
| Storage environment | Temperature: -40°C to +85°C degrees Altitude: 15,000 feet IEC 60068-2-14 |
| Humidity | Relative humidity of 5% to 95% non-condensing IEC 60068-2-78 IEC 60068-2-30 |
| Shock and vibration | IEC 60068-2-27 (operational shock, 50G, 3ms, half sine) IEC 60068-2-27 (non-operational shock, 65-80G, 9ms, trapezoidal) MIL-STD-810, Method 514.4 IEC 60068-2-6 (vibration-sinusiodal, 5Hz-150Hz) |
| Corrosion | IEC 60068-2-52 (salt fog)2 IEC 60068-2-60 (flowing mixed gas)2 |
| Railway | EN50125-1: 2014 EN50125-3: 2003 EN50121-4 Railway – Signaling and Telecommunications Apparatus EN50121-3-2 / EN50155 (EMC) |
| Warranty | Five-year limited hardware warranty on all IE3300 product IDs and all Industrial Ethernet (IE) power supplies. See more information under the Warranty section |
| MTBF (hours) | 611.35 |
