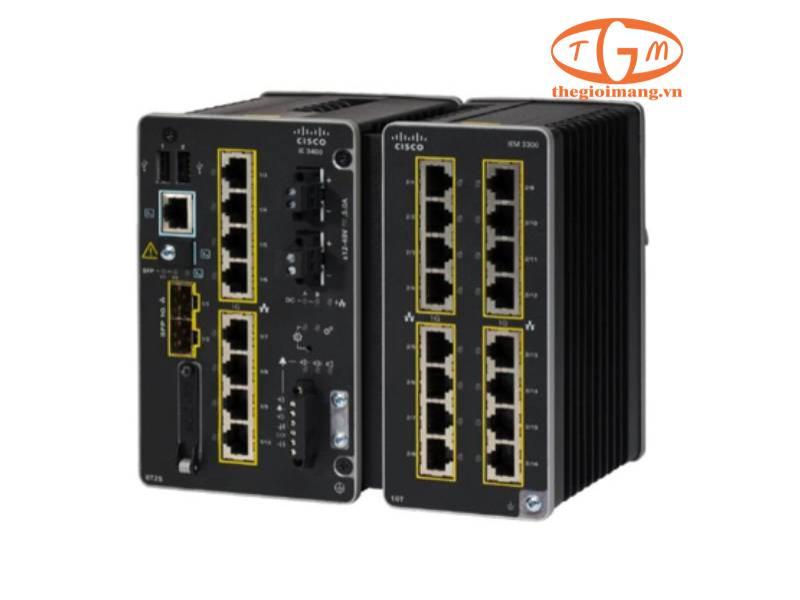

Name: IE-3400-8P2S-E Catalyst IE3400 with 8 GE PoE/PoE+, 2 GE SFP, Adv. Modular, Network Essentials
Brand: Cisco Industrial Switches
SKU: IE-3400-8P2S-E
Price: 99999 VND
Availability: InStock
Rating: 5 (27 reviews)

Hỗ trợ trực tuyến

Hỗ trợ tư vấn

CCNP, MCSE

0909648899

Hỗ trợ kinh doanh

Mr. Quốc

0917684899

Ms. Vy

0906641689

Ms. Uyên

0917993131

Ms. Mỹ

0915793030

Hỗ trợ kỹ thuật

Mr. Hậu

0834452514

Mr. Lực

0913563710

Mô tả sản phẩm

Cisco Catalyst IE-3400-8P2S-E là thiết bị chuyển mạch Ethernet công nghiệp hỗ trợ PoE/PoE+ công suất đến 480W, cung cấp 8 cổng RJ45 tốc độ 10/100/1000Mbps và 2 cổng uplink SFP 100/1000Mbps. Với giấy phép phần mềm Network Essentials, thiết bị phù hợp cho nhu cầu chuyển mạch lớp 2, định tuyến cơ bản (static, Inter-VLAN), cùng khả năng bảo mật mạnh mẽ như MACsec-128, 802.1X, DHCP snooping và các tính năng quản lý nâng cao như RESTCONF, NETCONF, SmartPort, WebUI...

Đặc điểm nổi bật:

Hỗ trợ PoE+ công suất cao 480W – cấp nguồn trực tiếp cho camera, AP, PLC, HMI, thiết bị công nghiệp.
Tính năng Layer 2 nâng cao – hỗ trợ VLAN, STP/MSTP, EtherChannel, QoS, IGMP snooping, 802.1X...
Định tuyến cơ bản – Inter-VLAN, Static Routing, IPv6 host & quản lý đầy đủ.
Bảo mật mạnh – MACsec-128, DHCP snooping, IP Source Guard, SNMPv3, 802.1X, SUDI, FIPS 140-2.
Chống chịu khắc nghiệt – hoạt động liên tục ở -40°C đến +75°C, tiêu chuẩn IP30, EMC cao cấp.
Tích hợp tự động hóa công nghiệp – EtherNet/IP, PROFINET, PTPv2, DLR, GOOSE messaging.
Hỗ trợ container IOx – tích hợp ứng dụng an ninh, giám sát, phân tích dữ liệu mạng công nghiệp.

Xem thêm

Thông số kỹ thuật

Descriptions	IE-3400-8P2S-E
Total ports	10
10/100/1000 RJ45 Copper ports	8
100/1000 SFP ports	2
1GE/2.5G RJ45 Copper ports	-
Software license	Network Essentials
Hardware specification
PoE power budget	480W
Removable storage	USB, SD card
Alarms	2 alarms in, 1 alarm out
Console ports	1 RS-232 (via RJ-45), 1 USB Mini Type B
Power inputs	Dual DC power inputs
Physical configurations
Dimensions (H x W x D)	6 in. X 4.4 in. X 5.3 in. 15.2 cm. x 11.2 cm. x 13.5cm
Weight	5.0 lbs 2.3 Kg
Mounting	DIN rail
Performance and scalability features
Forwarding rate	Line rate for all ports and all packet sizes
Number of queues	8
Unicast MAC addresses	16K
Internet Group Management Protocol (IGMP) multicast groups	1K
No. of VLANs	256
IPv4 Indirect routes1	3000
IPv6 Indirect routes1	512
Spanning Tree Protocol (STP) instances	128
Access Control Entries (PACL/VACL/RACL)	3K
DRAM	4 GB
Flash [User Accessible]	1.5 GB
SD card capacity2	4 GB, 16 GB
Jumbo Frames	8996 bytes
Power consumption	47W
Compliance Specifications
Industrial Automation Control System	IEC 62443-4-1 IEC 62443-4-2
Electromagnetic emissions	FCC 47 CFR Part 15 subpart B Class A EN 55032/CISPR 32 Class A VCCI Class A AS/NZS CISPR 32 Class A CISPR 11 Class A ICES 003 Class A CNS 13438 Class A3 KN 32 Class A3 EN 300 386
Electromagnetic immunity	CISPR 24 / CISPR 35 EN55024/ EN55035 KN 35 EN 61000-4-2 Electro Static Discharge (air – 15kV, contact – 8kV) EN 61000-4-3 Radiated RF (10V/m UTP, 20V/m STP) EN 61000-4-4 Electromagnetic Fast Transients (4kV) EN 61000-4-5 Surge (2KV/1KV Power, 4KV STP) EN 61000-4-6 Conducted RF (10Vrms UTP) EN 61000-4-8 Power Frequency Magnetic Field (1000A/m) EN 61000-4-10 Damped Oscillatory Magnetic Field (100 A/m) EN 61000-4-16 Conducted CM Disturbances (30V, Cont/ 300V, 1 sec) EN 61000-4-17 Ripple Immunity DC Power (10%) EN 61000-4-18 Damped Oscillatory Wave (2.5kV, 1MHz) EN-61000-4-29 DC Voltage Dips and Interruptions
Industry standards	EN 61000-6-2 Industrial Immunity EN 61000-6-4 Industrial Emissions EN 61000-6-1 Light Industrial Immunity EN 61326-1 Measurement, Control and Laboratory Equipment EN 61131-2 (EMC - Emission and Immunity) IEEE 1613 Electric Power Stations Communications Networking EN/IEC 61850-3 Electric Substations Communications Networking ODVA Industrial EtherNet/IP NEMA TS 2-2016 AREMA C and S section 11, 19 IP30
Marine I	DNV Certification according to class guideline DNV-CG-0339 Additional Standards: IEC 60945, IACS UR E10 Marine DNV GL – Ships; High speed and light craft
Safety standards and certifications	Information Technology Equipment: UL/CSA 60950-1, IEC 60950-1 CB with all country deviations UL/CSA 62368-1, IEC 62368-1 CB with all country deviations Industrial floor (control equipment): UL/CSA 61010-2-201 CB report and certificate to IEC/EN 61010-2-201 Hazardous locations: UL121201(Class l, Div 2, groups A-D) CSA 213 (Class l, Div 2, groups A-D) UL/CSA 60079-0, -15 (Class l, Zone 2, Gc/IIC) IEC 60079-0, -15 IECEx test report (Class l, Zone 2, Gc/IIC) EN 60079-0, -15 ATEX certificate (Class l, Zone 2, Gc/IIC) Cabinet enclosure required
Operating environment	Operating temperature: -40°C to +70°C (40 LFM vented enclosure) -40°C to +60°C (sealed enclosure) -40°C to +75°C (Min. 200 LFM fan or blower-equipped enclosure) +85°C (type tested for 16 hours) Altitude: up to 15,000 feet
Storage environment	Temperature: -40°C to +85°C degrees Altitude: 15,000 feet IEC 60068-2-14
Humidity	Relative humidity of 5% to 95% non-condensing IEC 60068-2-78 IEC 60068-2-30
Shock and vibration	IEC 60068-2-27 (operational shock, 50G, 3ms, half sine) IEC 60068-2-27 (non-operational shock, 65-80G, 9ms, trapezoidal) MIL-STD-810, Method 514.4 IEC 60068-2-6 (vibration-sinusiodal, 5Hz-150Hz)
Corrosion	IEC 60068-2-52 (salt fog)2 IEC 60068-2-60 (flowing mixed gas)2
Railway	EN50125-1: 2014 EN50125-3: 2003 EN50121-4 Railway – Signaling and Telecommunications Apparatus EN50121-3-2 / EN50155 (EMC)
Warranty	Five-year limited hardware warranty on all IE3300 product IDs and all Industrial Ethernet (IE) power supplies. See more information under the Warranty section
MTBF (hours)	401.313
Network Essentials License
Layer 2 switching	IEEE 802.1Q, 802.1w,802.1ab,802.1s, 802.3ad standard, NTP, UDLD, CDP, LLDP, unicast MAC filter, PAgP, LACP VTPv2, VTPv3, EtherChannel, Q-in-Q tunneling, voice VLAN, PVST+, MSTP, RSTP, Selective Q-in-Q, Layer 2 Tunneling
Multicast	IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier
Management	WebUI, MIB, SmartPort, SNMP, syslog, DHCP server, SPAN session, RSPAN, FSPAN, FRSPAN, Express setup, Delayless IPDT
Security	Port security, 802.1x, Dynamic Host Configuration Protocol (DHCP) snooping, dynamic ARP inspection, IP source guard, guest VLAN, MAC authentication bypass, 802.1x multidomain authentication, storm control - unicast, multicast, broadcast, SCP, SSH, SNMPv3, TACACS+, RADIUS server/client, MAC address notification, BPDU guard, Access Lists(PACL/RACL/VACL), SUDI 2099 (Secure Unique Device identifier), Full Flexible NetFlow (FNF), MACsec-128, FIPS 140-2
Quality of Service (QoS)	Ingress policing, rate limit, egress queuing/shaping, auto QoS
IPv6	IPv6 host support, SNMP over IPv6, HTTP/HTTP(s) over IPv6, SNMP over IPv6, Syslog over IPv6, DHCPv6 relay source, DHCPv6 bulk lease query (RFC 5460), IPv6 stateless Auto Config, SCP/SSH, Radius, TACACS+, NTP over IPv6, IPv6 VRF aware BGPv6, IPV6 ND cache expire, IPv6 support for TFTP, IPv6 DNS transport, IPv6 QoS, IPv6 FHS RA Guard, IPv6 FHS DHCPv6 Guard
Layer 3 routing	Inter-VLAN routing, Static routing
Industrial Ethernet	CIP Ethernet/IP, 3IEEE 1588 PTP v2 (default and power), PROFINET
Redundancy	Resilient Ethernet Protocol (REP) ring, PROFINET-Multi Ring Protocol (MRP), REP Negotiated, Fast REP, REP Autodiscovery, REP ZTP Support, Parallel redundancy protocol (PRP)2, PTP over PRP, High-Availability Seamless Redundancy (HSR-SAN), Device Level Ring (DLR), HSR-PRP Dual Redbox
Utility	Dying gasp, SCADA protocol classification – GOOSE messaging, MODBUS TCP/IP
Automation	YANG, NETCONF, RESTCONF
Industrial Management	Layer 2 switching with 1:1 switch Network Address Translation (L2NAT)1
IOx	Container (Native Docker), Cyber Vision, Secure Equipment Access

Download file Datasheet

Xem thêm thông số kỹ thuật
