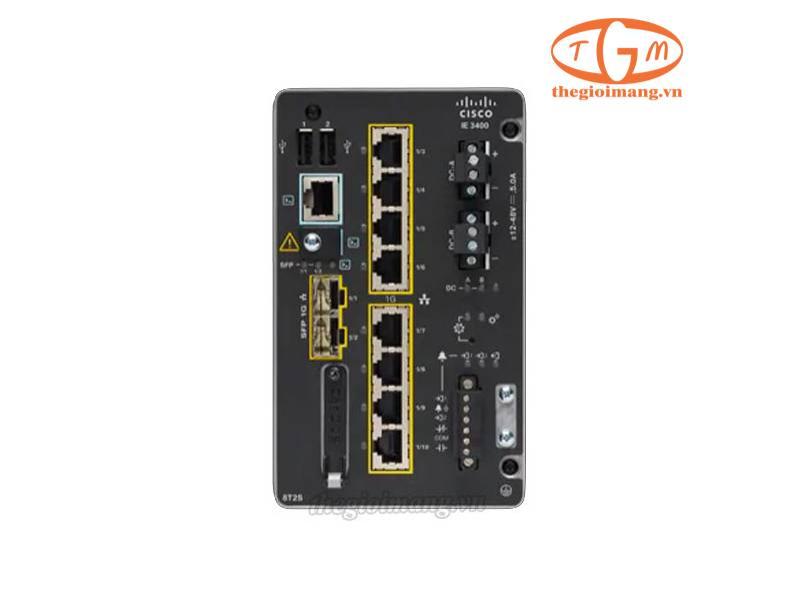

Name: IE-3400-8T2S-A Catalyst IE3400 with 8 GE Copper and 2 GE SFP, Adv. Modular, Network Advantage
Brand: Cisco Industrial Switches
SKU: IE-3400-8T2S-A
Price: 99999 VND
Availability: InStock
Rating: 5 (27 reviews)

Hỗ trợ trực tuyến

Hỗ trợ tư vấn

CCNP, MCSE

0909648899

Hỗ trợ kinh doanh

Mr. Quốc

0917684899

Ms. Vy

0906641689

Ms. Uyên

0917993131

Ms. Mỹ

0915793030

Hỗ trợ kỹ thuật

Mr. Hậu

0834452514

Mr. Lực

0913563710

Mô tả sản phẩm

Cisco Catalyst IE-3400-8T2S-A là switch Ethernet công nghiệp dòng IE3400, cung cấp hiệu suất chuyển mạch vượt trội với 8 cổng 10/100/1000 RJ45 và 2 cổng SFP 1G. Thiết bị hoạt động trên nền tảng phần mềm Network Advantage, hỗ trợ định tuyến IP nâng cao (OSPF, BGP, EIGRP, VRRP...), an toàn dữ liệu với MACsec-256, TrustSec, cùng khả năng hoạt động ổn định trong môi trường khắc nghiệt đến +75°C. Phù hợp cho các ứng dụng tự động hóa, điện lực, giao thông và hệ thống SCADA công nghiệp.

Đặc điểm nổi bật:

Hiệu suất cao & định tuyến nâng cao: Hỗ trợ OSPF, BGP, EIGRP, PBR, VRRP, BFD, PIM...
Bảo mật mạnh mẽ: MACsec-256, Cisco TrustSec, SGT/SGACL, chính sách truy cập linh hoạt.
Thiết kế công nghiệp chuẩn IP30: Chịu nhiệt từ -40°C đến +75°C, sốc 50G, chống ăn mòn, rung lắc.
Quản lý & Ảo hóa tiên tiến: VRF-lite, VRF-aware SGT, RESTCONF, NETCONF, IOx Container tích hợp.
Hỗ trợ truyền thông công nghiệp: EtherNet/IP, PROFINET, GOOSE messaging, MODBUS TCP/IP, PTP v2.

Xem thêm

Thông số kỹ thuật

Descriptions	IE-3400-8T2S-A
Total ports	10
10/100/1000 RJ45 Copper ports	8
100/1000 SFP ports	2
1GE/2.5G RJ45 Copper ports	-
Software license	Network Advantage
Hardware specification
PoE power budget	Not applicable
Removable storage	USB, SD card
Alarms	2 alarms in, 1 alarm out
Console ports	1 RS-232 (via RJ-45), 1 USB Mini Type B
Power inputs	Dual DC power inputs
Physical configurations
Dimensions (H x W x D)	6 in. X 3.6 in. X 5.3 in. 15.2 cm. x 9.1 cm. x 13.5 cm
Weight	3.8 lbs 1.7 kg
Mounting	DIN rail
Performance and scalability features
Forwarding rate	Line rate for all ports and all packet sizes
Number of queues	8
Unicast MAC addresses	16K
Internet Group Management Protocol (IGMP) multicast groups	1K
No. of VLANs	256
IPv4 Indirect routes1	3000
IPv6 Indirect routes1	512
Spanning Tree Protocol (STP) instances	128
Access Control Entries (PACL/VACL/RACL)	3K
DRAM	4 GB
Flash [User Accessible]	1.5 GB
SD card capacity2	4 GB, 16 GB
Jumbo Frames	8996 bytes
Power consumption	36W
Compliance Specifications
Industrial Automation Control System	IEC 62443-4-1 IEC 62443-4-2
Electromagnetic emissions	FCC 47 CFR Part 15 subpart B Class A EN 55032/CISPR 32 Class A VCCI Class A AS/NZS CISPR 32 Class A CISPR 11 Class A ICES 003 Class A CNS 13438 Class A3 KN 32 Class A3 EN 300 386
Electromagnetic immunity	CISPR 24 / CISPR 35 EN55024/ EN55035 KN 35 EN 61000-4-2 Electro Static Discharge (air – 15kV, contact – 8kV) EN 61000-4-3 Radiated RF (10V/m UTP, 20V/m STP) EN 61000-4-4 Electromagnetic Fast Transients (4kV) EN 61000-4-5 Surge (2KV/1KV Power, 4KV STP) EN 61000-4-6 Conducted RF (10Vrms UTP) EN 61000-4-8 Power Frequency Magnetic Field (1000A/m) EN 61000-4-10 Damped Oscillatory Magnetic Field (100 A/m) EN 61000-4-16 Conducted CM Disturbances (30V, Cont/ 300V, 1 sec) EN 61000-4-17 Ripple Immunity DC Power (10%) EN 61000-4-18 Damped Oscillatory Wave (2.5kV, 1MHz) EN-61000-4-29 DC Voltage Dips and Interruptions
Industry standards	EN 61000-6-2 Industrial Immunity EN 61000-6-4 Industrial Emissions EN 61000-6-1 Light Industrial Immunity EN 61326-1 Measurement, Control and Laboratory Equipment EN 61131-2 (EMC - Emission and Immunity) IEEE 1613 Electric Power Stations Communications Networking EN/IEC 61850-3 Electric Substations Communications Networking ODVA Industrial EtherNet/IP NEMA TS 2-2016 AREMA C and S section 11, 19 IP30
Marine I	DNV Certification according to class guideline DNV-CG-0339 Additional Standards: IEC 60945, IACS UR E10 Marine DNV GL – Ships; High speed and light craft
Safety standards and certifications	Information Technology Equipment: UL/CSA 60950-1, IEC 60950-1 CB with all country deviations UL/CSA 62368-1, IEC 62368-1 CB with all country deviations Industrial floor (control equipment): UL/CSA 61010-2-201 CB report and certificate to IEC/EN 61010-2-201 Hazardous locations: UL121201(Class l, Div 2, groups A-D) CSA 213 (Class l, Div 2, groups A-D) UL/CSA 60079-0, -15 (Class l, Zone 2, Gc/IIC) IEC 60079-0, -15 IECEx test report (Class l, Zone 2, Gc/IIC) EN 60079-0, -15 ATEX certificate (Class l, Zone 2, Gc/IIC) Cabinet enclosure required
Operating environment	Operating temperature: -40°C to +70°C (40 LFM vented enclosure) -40°C to +60°C (sealed enclosure) -40°C to +75°C (Min. 200 LFM fan or blower-equipped enclosure) +85°C (type tested for 16 hours) Altitude: up to 15,000 feet
Storage environment	Temperature: -40°C to +85°C degrees Altitude: 15,000 feet IEC 60068-2-14
Humidity	Relative humidity of 5% to 95% non-condensing IEC 60068-2-78 IEC 60068-2-30
Shock and vibration	IEC 60068-2-27 (operational shock, 50G, 3ms, half sine) IEC 60068-2-27 (non-operational shock, 65-80G, 9ms, trapezoidal) MIL-STD-810, Method 514.4 IEC 60068-2-6 (vibration-sinusiodal, 5Hz-150Hz)
Corrosion	IEC 60068-2-52 (salt fog)2 IEC 60068-2-60 (flowing mixed gas)2
Railway	EN50125-1: 2014 EN50125-3: 2003 EN50121-4 Railway – Signaling and Telecommunications Apparatus EN50121-3-2 / EN50155 (EMC)
Warranty	Five-year limited hardware warranty on all IE3300 product IDs and all Industrial Ethernet (IE) power supplies. See more information under the Warranty section
MTBF (hours)	549.808
Network Advantage License (Perpetual)
IP routing Protocols	OSPF (IPv4 and IPv6), BGP (v4 and v6), ISIS (v4 and v6), RIP (v1 and v2), EIGRP (v4 and v6), Policy based routing (PBR), VRRP (v4 and v6), HSRP (v4 and v6), BFD Echo Mode for OSPFv3
Virtualization	Vrf-lite, VRF-Aware SGT
Security	MACsec-256, SGT/SGACL1,Cisco TrustSec
IP Multicast	PIM sparse mode (PIM-SM), PIM dense mode (PIM-DM), MSDP, Multicast routing BSR (IPv4/IPv6), Auto RP (IPv4), Embedded RP (IPv6)

Download file Datasheet

Xem thêm thông số kỹ thuật
