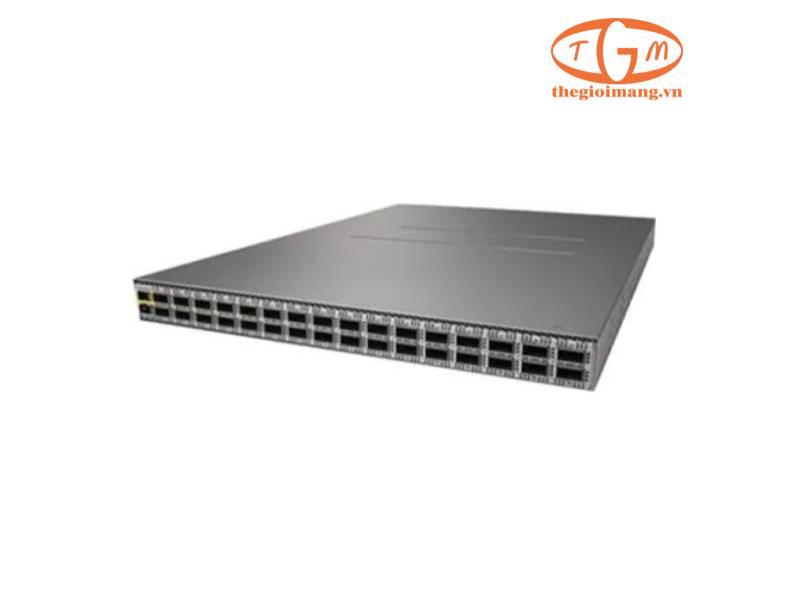

Name: N3K-C3432D-S Nexus 3432D-S switch with 32ports of QSFP-DD
Brand: Cisco Nexus Switches
SKU: N3K-C3432D-S
Price: 99999 VND
Availability: InStock
Rating: 5 (27 reviews)

Hỗ trợ trực tuyến

Hỗ trợ tư vấn

CCNP, MCSE

0909648899

Hỗ trợ kinh doanh

Mr. Quốc

0917684899

Ms. Vy

0906641689

Ms. Uyên

0917993131

Ms. Mỹ

0915793030

Hỗ trợ kỹ thuật

Mr. Hậu

0834452514

Mr. Lực

0913563710

Mô tả sản phẩm

Cisco Nexus 3432D-S là switch trung tâm dữ liệu hiệu năng cao, trang bị 32 cổng 400G QSFP-DD hỗ trợ tương thích ngược với QSFP+, QSFP28 và QSFP56. Thiết bị mang lại băng thông chuyển mạch 25.6 Tbps, độ trễ cực thấp và khả năng mở rộng vượt trội, đáp ứng nhu cầu xử lý lưu lượng lớn trong các hệ thống mạng hiện đại. Với thiết kế nguồn đôi dự phòng, quạt dự phòng 5+1, cùng các tính năng quản lý và bảo mật toàn diện, Nexus 3432D-S đảm bảo hoạt động ổn định, tin cậy cho trung tâm dữ liệu quy mô lớn.

Đặc điểm nổi bật:

32 × 400G QSFP-DD, tương thích QSFP+, QSFP28, QSFP56.
Băng thông 25.6 Tbps, 120K MAC, tối đa 440K tuyến IPv4.
Nguồn đôi dự phòng, 5+1 quạt thay nóng, hỗ trợ luồng khí thuận/ngược.
Bộ đệm 70 MB, bộ nhớ flash 128 GB, xử lý hiệu quả lưu lượng lớn.
Hỗ trợ Layer 2/3 tiên tiến, VRF, vPC, jumbo frames, ACL mở rộng.
Quản lý linh hoạt với NX-OS, Python scripting, REST API, SNMP, RBAC.

Xem thêm

Thông số kỹ thuật

Specification	Cisco Nexus 3432D-S
Physical	● 32 fixed 400-Gigabit-Ethernet QSFP-DD ports ● Beacon LED ● Status LED ● Dual-redundant power supplies ● Redundant (5+1) fans ● Two 100/1000Mbps SFP ports in front (ports 33 and 34) ● One RS-232 serial console port ● One RJ45 and one SFP management port ● One USB port
Performance	25.6 Tbps switching capacity
Typical operating power	626W
Maximum power	1240W
Typical heat dissipation	2136 BTU/hr
Maximum heat dissipation	4231 BTU/hr
Hardware tables and scalability
Number of MAC addresses	120K
Number of IPv4/IPv6 unicast routes	440K / 360K
Number of IPv4/IPv6 hosts	192K / 96K
Number of IPv4 multicast routes	Up to 96K with 8K groups
Number of VLANS	4K
Number of ACL entries	3.5K ingress and 1.5K egress
Number of spanning-tree instances	Rapid Spanning Tree Protocol (RSTP): 123 Multiple Spanning Tree (MST) Protocol: 64
Number of EtherChannels	24
Number of ports per EtherChannel	24
Buffer size	70 MB
Boot flash memory	128 GB
Number of power supplies	2 (redundant)
Power supply types	AC (forward and reversed airflow)
Input voltage	100 to 240 VAC
Frequency	50 to 60 Hz
Power supply efficiency	89 to 91% at 220V
Cooling	Forward and reversed airflow schemes ● Forward airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies) ● Reversed airflow: Port-side exhaust (air enters through fan tray and power supplies and exits through ports) Six individual, hot-swappable fans (5+1 redundant)
Environment
Dimensions (height x width x depth)	1.75 x 17.29 x 25.4 in. (4.44 x 43.91 x 64.51cm)
Weight	30 pounds or 13.6 Kg
Operating temperature	32 to 104° F (0 to 40°C)
Storage temperature	-40 to 158° F (-40 to 70°C)
Relative humidity	5 to 95% non-condensing
Altitude (Operating)	Up to 13,123 ft.
Altitude (Non-Operating)	Up to 16,000 ft.
Software features common
Layer 2	● Layer 2 switch ports and VLAN trunks ● IEEE 802.1Q VLAN encapsulation ● Support for up to 4096 VLANs ● Rapid Per-VLAN Spanning Tree Plus (PVRST+) (IEEE 802.1w compatible) ● MSTP (IEEE 802.1s): 64 instances ● Spanning Tree PortFast ● Spanning Tree Root Guard ● Spanning Tree Bridge Assurance ● Cisco EtherChannel technology (up to 24 ports per EtherChannel) ● LACP: IEEE 802.3ad, IEEE 802.1ax ● Advanced PortChannel hashing based on layer 2, 3, and 4 information ● Jumbo frames on all ports (up to 9216 bytes) ● Link-level flow control (IEEE 802.3x) ● vPC
Layer 3	● Layer 3 interfaces: Routed ports on interfaces, Switch Virtual Interfaces (SVIs), PortChannels, and subinterfaces (total: 1024) ● 64-way Equal-Cost Multipath (ECMP) ● 4096 ACL entries ● Routing protocols: Static, RIPv2, EIGRP, OSPF, IS-IS, and BGP ● HSRP and VRRP ● ACL: Routed ACL with layer 3 and 4 options to match ingress and egress ACLs ● VRF: VRF-Lite (IP VPN), VRF-aware unicast (BGP, OSPF, and RIP), and VRF‑aware multicast ● VRF route leaking ● Jumbo frame support (up to 9216 bytes)
Security	● Ingress ACLs (standard and extended) on Ethernet ● Standard and extended layer 3 to 4 ACLs include IPv4, Internet Control Message Protocol (ICMP), Transmission Control Protocol (TCP), and User Datagram Protocol (UDP) ● VLAN-based ACLs (VACLs) ● Port-based ACLs (PACLs) ● ACLs on virtual terminals (VTYs) ● Dynamic Host Configuration Protocol (DHCP) relay ● Control Plane Policing (CoPP)
Cisco Nexus Data Broker	● Topology support for tap and SPAN aggregation ● Traffic load balancing to multiple monitoring tools ● Packet truncation ● Traffic filtering based on layer 1 through layer 4 header information ● Traffic replication and forwarding to multiple monitoring tools ● Robust Role-Based Access Control (RBAC) ● Northbound Representational State Transfer (REST) API for all programmability support
Management	● Power On Auto Provisioning (POAP) ● Python scripting ● Switch management using 10/100/1000-Mbps management or console ports ● CLI-based console to provide detailed out-of-band management ● In-band switch management ● Locator and beacon LEDs ● Configuration rollback ● SSHv2 ● Telnet ● AAA ● AAA with RBAC ● RADIUS ● TACACS+ ● Syslog ● Embedded packet analyzer ● SNMP v1, v2, and v3 ● Enhanced SNMP MIB support ● XML (NETCONF) support ● Remote monitoring (RMON) ● Advanced Encryption Standard (AES) for management traffic ● Unified username and passwords across CLI and SNMP ● Microsoft Challenge Handshake Authentication Protocol (MS-CHAP) ● Digital certificates for management between switch and RADIUS server ● Cisco Discovery Protocol (CDP) Versions 1 and 2 ● RBAC ● SPAN on physical, PortChannel, and VLAN ● ERSPAN Versions 2 and 3 ● Ingress and egress packet counters per interface ● Network Time Protocol (NTP) ● Cisco Online Health Management System (OHMS) ● Comprehensive bootup diagnostic tests ● Cisco Data Center Network Manager (DCNM ) ● Active buffer monitoring
Management and standards
MIB support	Generic MIBs ● SNMPv2-SMI ● CISCO-SMI ● SNMPv2-TM ● SNMPv2-TC ● IANA-ADDRESS-FAMILY-NUMBERS-MIB ● IANAifType-MIB ● IANAiprouteprotocol-MIB ● HCNUM-TC ● CISCO-TC ● SNMPv2-MIB ● SNMP-COMMUNITY-MIB ● SNMP-FRAMEWORK-MIB ● SNMP-NOTIFICATION-MIB ● SNMP-TARGET-MIB ● SNMP-USER-BASED-SM-MIB ● SNMP-VIEW-BASED-ACM-MIB ● CISCO-SNMP-VACM-EXT-MIB Ethernet MIBs ● CISCO-VLAN-MEMBERSHIP-MIB Configuration MIBs ● ENTITY-MIB ● IF-MIB ● CISCO-ENTITY-EXT-MIB ● CISCO-ENTITY-FRU-CONTROL-MIB ● CISCO-ENTITY-SENSOR-MIB ● CISCO-SYSTEM-MIB ● CISCO-SYSTEM-EXT-MIB ● CISCO-IP-IF-MIB ● CISCO-IF-EXTENSION-MIB ● CISCO-NTP-MIB ● CISCO-IMAGE-MIB ● CISCO-IMAGE-UPGRADE-MIB Monitoring MIBs ● NOTIFICATION-LOG-MIB ● CISCO-SYSLOG-EXT-MIB ● CISCO-PROCESS-MIB ● RMON-MIB ● CISCO-RMON-CONFIG-MIB ● CISCO-HC-ALARM-MIB Security MIBs ● CISCO-AAA-SERVER-MIB ● CISCO-AAA-SERVER-EXT-MIB ● CISCO-COMMON-ROLES-MIB ● CISCO-COMMON-MGMT-MIB ● CISCO-SECURE-SHELL-MIB Miscellaneous MIBs ● CISCO-LICENSE-MGR-MIB ● CISCO-FEATURE-CONTROL-MIB ● CISCO-CDP-MIB ● CISCO-RF-MIB Layer 3 and Routing MIBs ● UDP-MIB ● TCP-MIB ● OSPF-MIB ● OSPF-TRAP-MIB ● BGP4-MIB ● CISCO-HSRP-MIB
Standards	● IEEE 802.1D: Spanning Tree Protocol ● IEEE 802.1p: CoS Prioritization ● IEEE 802.1Q: VLAN Tagging ● IEEE 802.1s: Multiple VLAN Instances of Spanning Tree Protocol ● IEEE 802.1w: Rapid Reconfiguration of Spanning Tree Protocol ● IEEE 802.3z: Gigabit Ethernet ● IEEE 802.3ad: Link Aggregation Control Protocol (LACP) ● IEEE 802.1ax: Link Aggregation Control Protocol (LACP) ● IEEE 802.3ae: 10 Gigabit Ethernet ● IEEE 802.3ba: 40 Gigabit Ethernet ● IEEE 802.1ab: Link Layer Discovery Protocol (LLDP)
RFC	BGP ● RFC 1997: BGP Communities Attribute ● RFC 2385: Protection of BGP Sessions with the TCP MD5 Signature Option ● RFC 2439: BGP Route Flap Damping ● RFC 2519: A Framework for Inter-Domain Route Aggregation ● RFC 2545: Use of BGPv4 Multiprotocol Extensions ● RFC 2858: Multiprotocol Extensions for BGPv4 ● RFC 3065: Autonomous System Confederations for BGP ● RFC 3392: Capabilities Advertisement with BGPv4 ● RFC 4271: BGPv4 ● RFC 4273: BGPv4 MIB: Definitions of Managed Objects for BGPv4 ● RFC 4456: BGP Route Reflection ● RFC 4486: Subcodes for BGP Cease Notification Message ● RFC 4724: Graceful Restart Mechanism for BGP ● RFC 4893: BGP Support for Four-Octet AS Number Space OSPF ● RFC 2328: OSPF Version 2 ● 8431RFC 3101: OSPF Not-So-Stubby-Area (NSSA) Option ● RFC 3137: OSPF Stub Router Advertisement ● RFC 3509: Alternative Implementations of OSPF Area Border Routers ● RFC 3623: Graceful OSPF Restart ● RFC 4750: OSPF Version 2 MIB RIP ● RFC 1724: RIPv2 MIB Extension ● RFC 2082: RIPv2 MD5 Authentication ● RFC 2453: RIP Version 2 ● IP Services ● RFC 768: User Datagram Protocol (UDP) ● RFC 783: Trivial File Transfer Protocol (TFTP) ● RFC 791: IP ● RFC 792: Internet Control Message Protocol (ICMP) ● RFC 793: TCP ● RFC 826: Address Resolution Protocol (ARP) ● RFC 854: Telnet ● RFC 959: FTP ● RFC 1027: Proxy ARP ● RFC 1305: Network Time Protocol (NTP) Version 3 ● RFC 1519: Classless Interdomain Routing (CIDR) ● RFC 1542: BootP Relay ● RFC 1591: Domain Name System (DNS) Client ● RFC 1812: IPv4 Routers ● RFC 2131: DHCP Helper ● RFC 2338: VRRP

Download file Datasheet

Xem thêm thông số kỹ thuật
