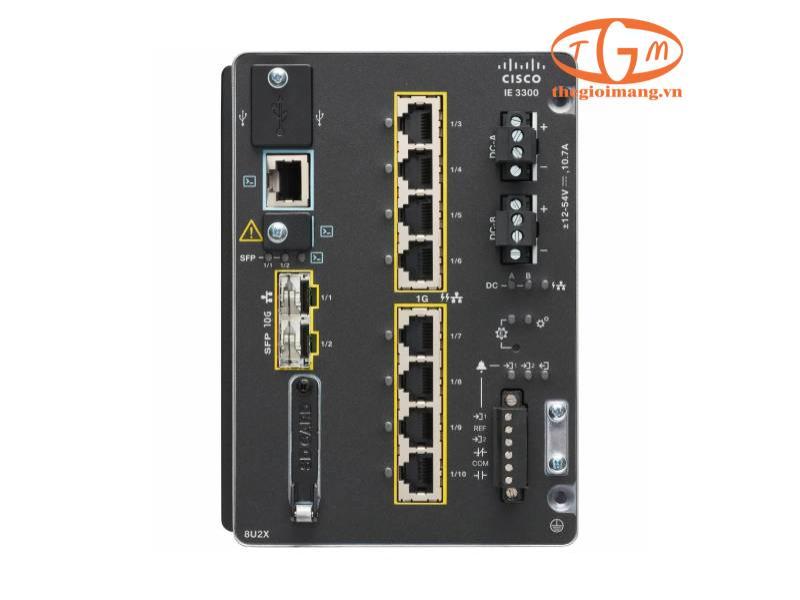

Cisco Catalyst IE-3300-8U2X-E là switch công nghiệp hiệu suất cao thuộc dòng Catalyst IE3300, được thiết kế đặc biệt cho môi trường khắc nghiệt với khả năng cung cấp PoE mạnh mẽ lên đến 480W. Thiết bị có tổng cộng 10 cổng, bao gồm 8 cổng Gigabit Ethernet và 2 cổng uplink 10G SFP+, hỗ trợ forwarding line-rate cho mọi kích thước gói tin. Với thiết kế nhỏ gọn, gắn được trên DIN rail, và hỗ trợ lưu trữ rời qua USB hoặc thẻ SD, IE-3300-8U2X-E là giải pháp lý tưởng cho các ứng dụng tự động hóa công nghiệp, giao thông thông minh và hệ thống năng lượng.

Đặc điểm nổi bật
-
Cổng kết nối mạnh mẽ:8 cổng 10/100/1000 Mbps RJ45, 2 cổng uplink 10G SFP+
-
PoE power budget lên đến 480W, phù hợp cho các thiết bị IP công nghiệp cần công suất cao.
-
Hiệu năng và mở rộng: 16K địa chỉ MAC, 256 VLAN, 128 phiên STP, Hỗ trợ 1K IGMP multicast và 3K Access Control Entries (PACL/VACL/RACL)
-
Bộ nhớ và lưu trữ: 4 GB DRAM, 1.5 GB Flash có thể truy cập, Hỗ trợ thẻ SD 4 GB hoặc 16 GB
-
Thiết kế công nghiệp: Gắn DIN rail, chống chịu môi trường khắc nghiệt, 2 nguồn DC đầu vào và hệ thống báo động linh hoạt (2 vào, 1 ra)
-
Khả năng xử lý toàn tuyến: Forwarding rate đạt line-rate trên mọi port và mọi kích thước gói tin, Hỗ trợ Jumbo Frame lên đến 8996 bytes
Xem thêm
Rút gọn
| Descriptions | IE-3300-8U2X-E |
| Total ports | 10 |
| 10/100/1000 RJ45 Copper ports | 8 |
| 100/1000 SFP ports | - |
| 1GE/2.5G RJ45 Copper ports | - |
| 1GE/10G SFP+ Ports | 2 |
| Software license | Network Essentials |
| Hardware specification | |
| PoE power budget | 480W |
| Removable storage | USB, SD card |
| Alarms | 2 alarms in, 1 alarm out |
| Console ports | 1 RS-232 (via RJ-45), 1 USB Mini Type B |
| Power inputs | Dual DC power inputs |
| Physical configurations | |
| Dimensions (H x W x D) | 6 in. X 4.4 in. X 5.3 in. 15.2 cm. x 11.2 cm. x 13.5 cm |
| Weight | 4.5 lbs 2.0 kg |
| Mounting | DIN rail |
| Performance and scalability features | |
| Forwarding rate | Line rate for all ports and all packet sizes |
| Number of queues | 8 |
| Unicast MAC addresses | 16K |
| Internet Group Management Protocol (IGMP) multicast groups | 1K |
| No. of VLANs | 256 |
| IPv4 Indirect routes1 | 3000 |
| IPv6 Indirect routes1 | 512 |
| Spanning Tree Protocol (STP) instances | 128 |
| Access Control Entries (PACL/VACL/RACL) | 3K |
| DRAM | 4 GB |
| Flash [User Accessible] | 1.5 GB |
| SD card capacity2 | 4 GB, 16 GB |
| Jumbo Frames | 8996 bytes |
| Power consumption | 42W |
| Compliance Specifications | |
| Industrial Automation Control System | IEC 62443-4-1 IEC 62443-4-2 |
| Electromagnetic emissions | FCC 47 CFR Part 15 subpart B Class A EN 55032/CISPR 32 Class A VCCI Class A AS/NZS CISPR 32 Class A CISPR 11 Class A ICES 003 Class A CNS 13438 Class A3 KN 32 Class A3 EN 300 386 |
| Electromagnetic immunity | CISPR 24 / CISPR 35 EN55024/ EN55035 KN 35 EN 61000-4-2 Electro Static Discharge (air – 15kV, contact – 8kV) EN 61000-4-3 Radiated RF (10V/m UTP, 20V/m STP) EN 61000-4-4 Electromagnetic Fast Transients (4kV) EN 61000-4-5 Surge (2KV/1KV Power, 4KV STP) EN 61000-4-6 Conducted RF (10Vrms UTP) EN 61000-4-8 Power Frequency Magnetic Field (1000A/m) EN 61000-4-10 Damped Oscillatory Magnetic Field (100 A/m) EN 61000-4-16 Conducted CM Disturbances (30V, Cont/ 300V, 1 sec) EN 61000-4-17 Ripple Immunity DC Power (10%) EN 61000-4-18 Damped Oscillatory Wave (2.5kV, 1MHz) EN-61000-4-29 DC Voltage Dips and Interruptions |
| Industry standards | EN 61000-6-2 Industrial Immunity EN 61000-6-4 Industrial Emissions EN 61000-6-1 Light Industrial Immunity EN 61326-1 Measurement, Control and Laboratory Equipment EN 61131-2 (EMC - Emission and Immunity) IEEE 1613 Electric Power Stations Communications Networking EN/IEC 61850-3 Electric Substations Communications Networking ODVA Industrial EtherNet/IP NEMA TS 2-2016 AREMA C and S section 11, 19 IP30 |
| Marine I | DNV Certification according to class guideline DNV-CG-0339 Additional Standards: IEC 60945, IACS UR E10 Marine DNV GL – Ships; High speed and light craft |
| Safety standards and certifications | Information Technology Equipment: UL/CSA 60950-1, IEC 60950-1 CB with all country deviations UL/CSA 62368-1, IEC 62368-1 CB with all country deviations Industrial floor (control equipment): UL/CSA 61010-2-201 CB report and certificate to IEC/EN 61010-2-201 Hazardous locations: UL121201(Class l, Div 2, groups A-D) CSA 213 (Class l, Div 2, groups A-D) UL/CSA 60079-0, -15 (Class l, Zone 2, Gc/IIC) IEC 60079-0, -15 IECEx test report (Class l, Zone 2, Gc/IIC) EN 60079-0, -15 ATEX certificate (Class l, Zone 2, Gc/IIC) Cabinet enclosure required |
| Operating environment | Operating temperature: -40°C to +70°C (40 LFM vented enclosure) -40°C to +60°C (sealed enclosure) -40°C to +75°C (Min. 200 LFM fan or blower-equipped enclosure) +85°C (type tested for 16 hours) Altitude: up to 15,000 feet |
| Storage environment | Temperature: -40°C to +85°C degrees Altitude: 15,000 feet IEC 60068-2-14 |
| Humidity | Relative humidity of 5% to 95% non-condensing IEC 60068-2-78 IEC 60068-2-30 |
| Shock and vibration | IEC 60068-2-27 (operational shock, 50G, 3ms, half sine) IEC 60068-2-27 (non-operational shock, 65-80G, 9ms, trapezoidal) MIL-STD-810, Method 514.4 IEC 60068-2-6 (vibration-sinusiodal, 5Hz-150Hz) |
| Corrosion | IEC 60068-2-52 (salt fog)2 IEC 60068-2-60 (flowing mixed gas)2 |
| Railway | EN50125-1: 2014 EN50125-3: 2003 EN50121-4 Railway – Signaling and Telecommunications Apparatus EN50121-3-2 / EN50155 (EMC) |
| Warranty | Five-year limited hardware warranty on all IE3300 product IDs and all Industrial Ethernet (IE) power supplies. See more information under the Warranty section |
| MTBF (hours) | 436.034 |
